What is the volume resistivity of a thin film panel

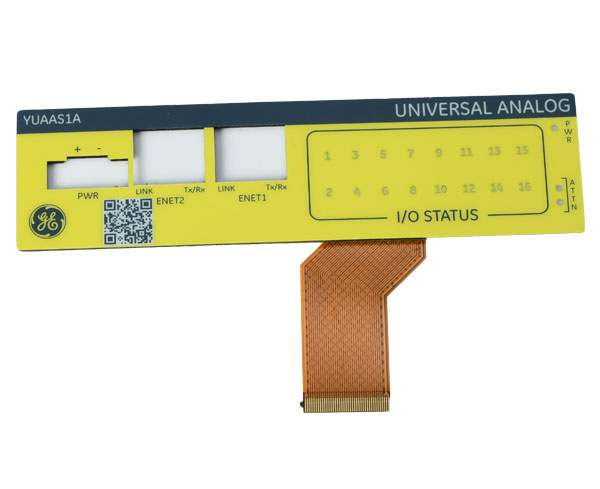

A thin film panel is a flexible or rigid sheet that integrates button functions,indicator elements,and decorative features.The range of its volume resistivity is relatively wide,which mainly depends on the material composition and manufacturing process of the thin film panel.

Generally speaking,the volume resistivity of ordinary insulating thin film panels can reach over 10Ω·m.These thin film panels are mainly used to prevent current leakage and ensure insulation in electrical equipment.For example,in some simple electronic device casing film panels,the material is usually polyethylene terephthalate(PET),which has good insulation properties and high volume resistivity.

Differences in volume resistivity of thin film panels made of different materials

If the thin film panel is made of conductive materials,such as polymer materials filled with metal particles,its volume resistivity will be significantly reduced.The volume resistivity of this conductive thin film panel may be between 10?-10?Ω·m.They are mainly used in situations such as electrostatic discharge(ESD),such as thin film panels used in some electrostatic sensitive electronic component production workshops,which can quickly guide static electricity away and avoid damage to electronic components caused by static electricity.

In addition,there is a type of semi conductive thin film panel with a volume resistivity between insulating and conductive materials,approximately around 10?-101Ω·m.This type of thin film panel may be achieved by adding a small amount of conductive filler to the insulation material,and its performance is between preventing current leakage and electrostatic discharge.It will be used in the interface design of some electronic devices that require moderate conductivity.

Factors affecting volume resistivity and their measurement significance

There are many factors that affect the volume resistivity of thin film panels,including the purity of the material,the type and content of additives,and the temperature and pressure during the manufacturing process.For example,in the manufacturing process,improper temperature control may cause changes in the internal structure of the material,thereby altering the volume resistivity.

Accurately measuring the volume resistivity of thin film panels is crucial for their application.In the field of electronic devices,it can help determine whether thin film panels can meet functional requirements such as insulation,electrostatic protection,or conductivity.If the volume resistivity does not meet the design requirements,it may lead to equipment failure,electrostatic damage,and other issues.
